Clack is a virtual network environment for visualizing network behavior and router internals.

Targeted for undergraduate students, Clack's intuitive UI and Java implementation makes it easy to use for in-class demos, "lab" homeworks, or as a network programming platform.

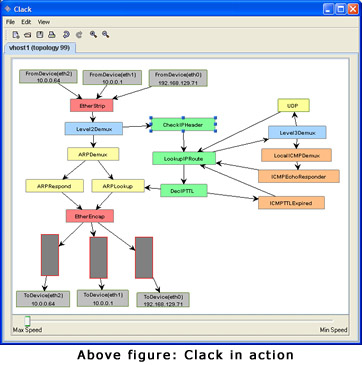

screenshot of router view

Instructors

More than 6 different universities have successfully used Clack with undergraduate networking courses. For details on currently available assignments, see the Clack Introduction and Instructor Resources pages.

Please contact us (info (at) clackrouter.net) if you are interested in using Clack. We are still open to working on new features to support new assignments.

Students

Using Clack as a student is usually quite simple, and the demos below can help you grasp the basic uses easily.

Please read our quick and graphical Introduction to Clack . Feel free to play with some of the demos below too.

Demos

You can try out Clack right now without installing anything! Here are a few demos, more coming soon!

Comments? Suggestions? Please email us at feedback (at) clackrouter.net !

Developers

Clack is open source and fun to hack on. The Clack Development page tells you more about potential projects.

If you are planning on adding new network functionality to Clack, check out:

  1. Our Developer Guide

  2. The most recent Javadoc

Overview Documents

For networking course instructors or developers looking for in-depth information about the Clack Graphical Router, try:

Clack Introduction A description of basic and advanced Clack features (last updated Feb. '07).
Clack Visualization Paper A 9-page write-up summarizing Clack (presented at ACM SoftVis Sept. '06).
Clack Honors Thesis Detailed description of the original Clack design (May '05).
Developer Documentation Describes how to extend Clack with new functionality (last update March '06).

Download

Clack is built on top of the JGraph Java library and is available under the GNU Public License.

Note: No download is needed to run Clack unmodified. You can simply try the demo now. Downloading the binary file is only needed if you plan on adding functionality to Clack as described in the developer documentation. The source code is provided for those interested in learning the API or making significant modifications, as well as to comply with the GPL.

Clack Releases:

Most recent release is version 1.7.1 (cira 2010)
